Tough Dog Suspension Toyota Landcruiser 100 Series Cygnus - 40mm Lift Foam Cell Comfort Series

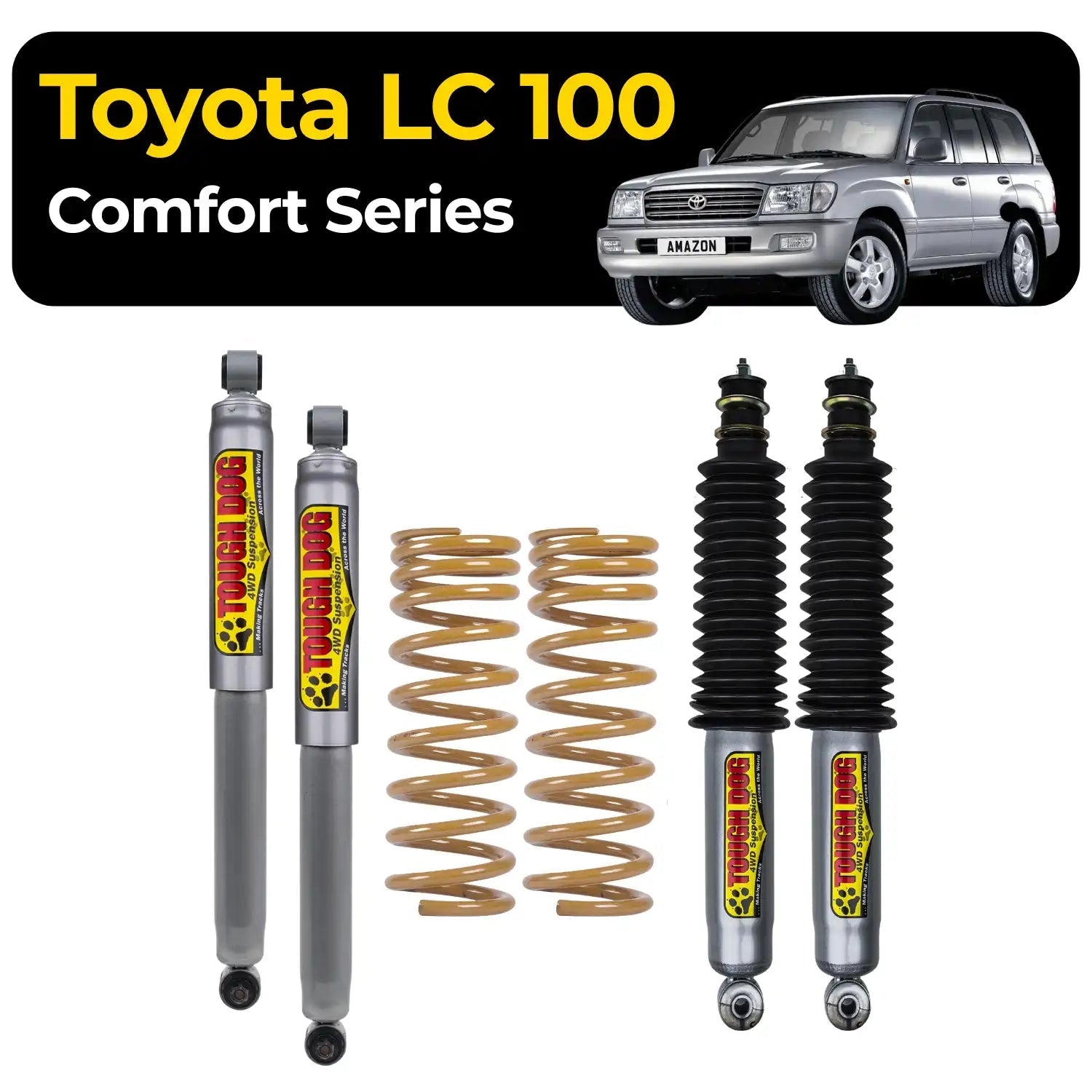

Kit Components

Foam Cell Shock Absorber (FRONT) FC41103 x 2

Foam Cell Shock Absorber (REAR) FC41114 x 2

0-300KG Rear Coil Springs (Pair) 1998 - 2007 100 Series IFS - 25mm

Lift (REAR) TDC949L x 1

Torsion Bars (Pair) (FRONT) 4WTB-1610 x 1

Foam Cell Shock Absorber (FRONT) FC41103

Large 41mm internal bore

Twin tube design

High temperature, all weather oil

18mm, double chrome-plated rod

Additional welding on all studs & eyerings

Multi stage Velocity Sensitive Valving

Rod wiper seal and multi lip seal

Hydraulic rebound stop

Foam Cell Shock Absorber (REAR) FC41114

Large 41mm internal bore

Twin tube design

High temperature, all weather oil

18mm, double chrome-plated rod

Additional welding on all studs & eyerings

Multi stage Velocity Sensitive Valving

Rod wiper seal and multi lip seal

Hydraulic rebound stop

Torsion Bars (Pair) (FRONT) 4WTB-1610

Tough Dog Performance 4WD Torsion Bars offer a spring rate that is approximately 30% higher than OEM bars.

This dynamic increase in spring rate eliminates hard bottoming out when travelling off road and gives better handling in street applications.

They can be installed with a moderate pre-load to raise the vehicle for better clearance off road, or to revitalise the handling characteristics at the standard height.

These performance-proven, easy-to-install bars are especially beneficial when oversize tyres or frontal accessories are installed. Regardless of the torsion bar used, or the accessories fitted, a minimum 60mm of suspension droop (down travel) must be maintained.

Specifications

32mm/1210mm (For Diesel) Adjust Torsion bars after fitting shocks - Ensure a minimum of 60mm Droop is Maintained 4WTB-1610-BKT Required with torsion bars

Compatibility

Toyota Landcruiser 1998 - 2007 100 Series (IFS) Diesel ONLY
